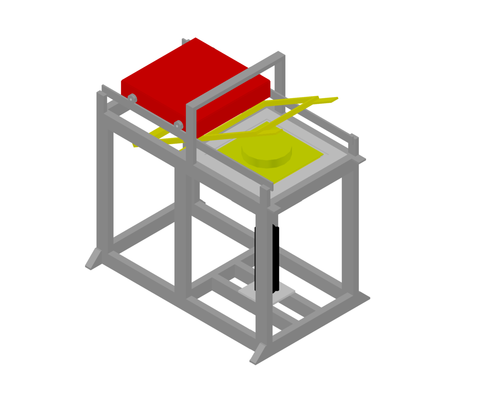

Semi-Auto vaccum Forming & skin packing machine


Technical Specifications

  • Forming area (mm/inches) :  400 mm x 400 mm / 500 mm x 500 mm / 600 mm x 600 mm
  • Max depth of draw : 250 mm / 300 mm / 500 mm
  • Max Material Thickness : 6mm
  • Heater type : Infrared Ceramic
  • Power Consumption : 8.0kW
  • Air Requirements : 80 PSI / 5 bar

Manual Sheet Loading






Sheet is loaded manually onto the forming bed.

Toggle Sheet Clamping System

sheet is loaded onto the forming bed, the sheet is clamped using Adjustable Toggle Clamps.

Heating System

The Heater Unit can be pulled forward manually once the sheet is loaded. The individual heating elements can be set using setting knobs on the front panel.The system features Infrared Ceramic Heating Elements or tubular road heating Elements it’s depend on product thickness.  The Infrared Ceramic heating system also features zone settings that enables even heat distribution and flexibility to handle multiple job orders on the same forming bed. All machines have zonal heater control with each zone of two elements.

Mould Platen System

The mould is placed over the mould platen. Once the sheet is heated to the set temperature, you must push the heater back and using a knob on the front panel make the mould platen drive up. The mould platen is pneumatically driven using an air-cylinder placed below the mould plate.

Vacuum Forming

The mould platen is up, the user must move the vacuum knob to suck the air out between the mould and the sheet so that the sheet takes the shape of the mould.

Final Step

When the part is formed, the blower on top is turned on to cool the sheet down. This is the final step after which the user can open the toggle frame to remove the shaped product.
